Solid State Amplifiers

Specifications:

Center frequency: 1497 MHz
Bandwidth: > ± 5 MHz
Designs up to 3 GHz possible
Output power range: 100W, 400W, 800W, 1.5kW, 3kW, 6kW
Peak Efficiency: > 50% @ 6.3 kW
Incremental gain: 0.5 dB/dB @ 5.2kW
Dimension, weight: 20”x18”x22” (L/W/H), ~250lbs (6kWmodule)
DC power supply voltage: 48 V and 12 V
Cost: Competitive

Features:

High efficiency
Compact
Reliable
Long lifetime
Safe

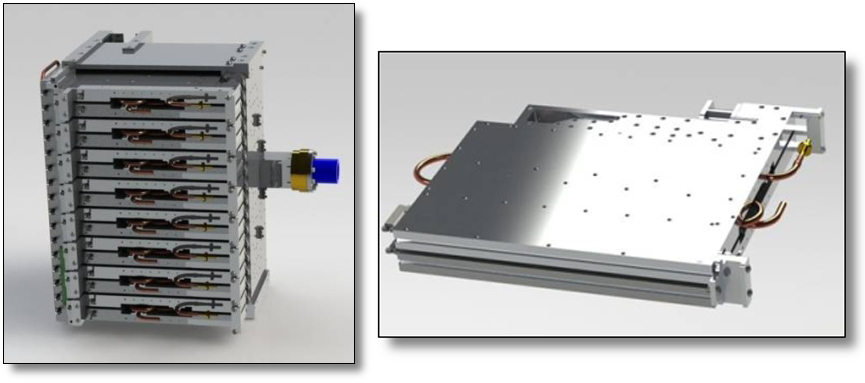

Solid State Amplifiers

Our high-power solid state amplifiers are designed and manufactured to high quality standards. They are strong candidates for replacing current CW klystron RF sources.

Solid State Amplifier Brochure
